| Manufacturer | Diodes Incorporated |
| Product Category | LDO Voltage Regulators |
| Product | LDO Regulators |
| Number Of Outputs | 1 Output |
| Operating Temperature Range | - 40 C to + 85 C |
| Input Voltage MIN | 2.5 V |
| Moisture Sensitive | Yes |
| Mounting Style | SMD/SMT |
| Output Type | Fixed |
| Voltage Regulation Accuracy | 2 % |
| Input Voltage MAX | 5.5 V |
| Line Regulation | 0.1 %/V |
| Pd - Power Dissipation | 500 mW (1/2 W) |
| Product Type | LDO Voltage Regulators |
| Load Regulation | 0.003 %/mA |

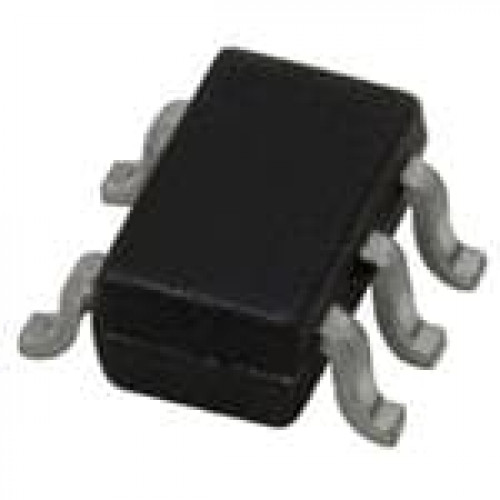

| Package / Case | SOT-353-5 |
| Length | 3 mm |
| Output Voltage | 1.5 V |
| Width | 1.6 mm |
| Height | 1.1 mm |
| Output Current | 150 mA |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Dropout Voltage - Max | 200 mV |
| Series | AP7115 |
| Packaging | Cut Tape or Reel |
| Brand | Diodes Incorporated |
| Ib - Input Bias Current | 80 uA |
| Factory Pack Quantity | 3000 |
| PSRR / Ripple Rejection - Typ | 70 dB |
| Subcategory | PMIC - Power Management ICs |
| Unit Weight | 0.000212 oz |
